Located in Landskrona in the South of Sweden. Working at the moment on some VDJ Plugins and some VDJ dedicated hardware...

Thu 04 May 06 @ 9:55 am

Here are the schematics for the pern-m1 mixer.

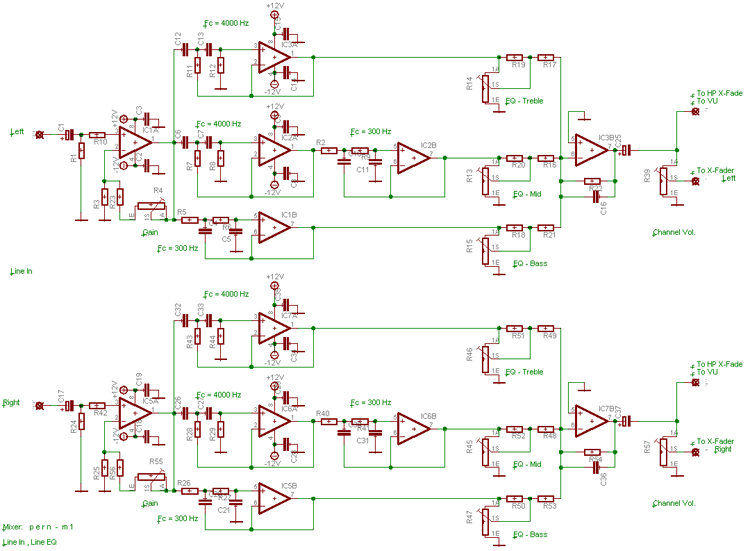

Line In (1 channel), Gain, 3-Band EQ with Rotary Kill, Channel Vol Fader.

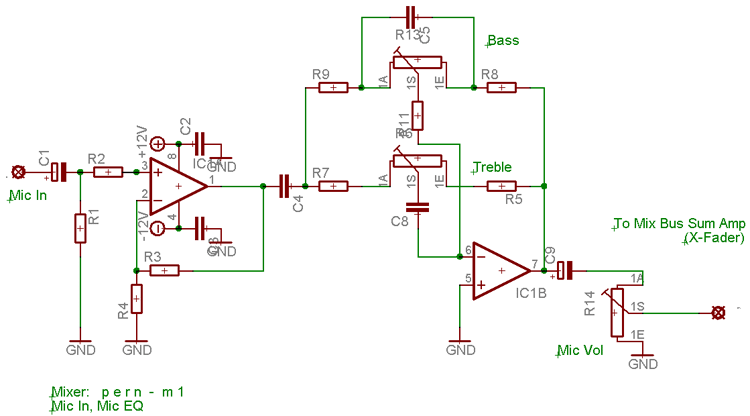

Mic In, Mic EQ, Mic Vol

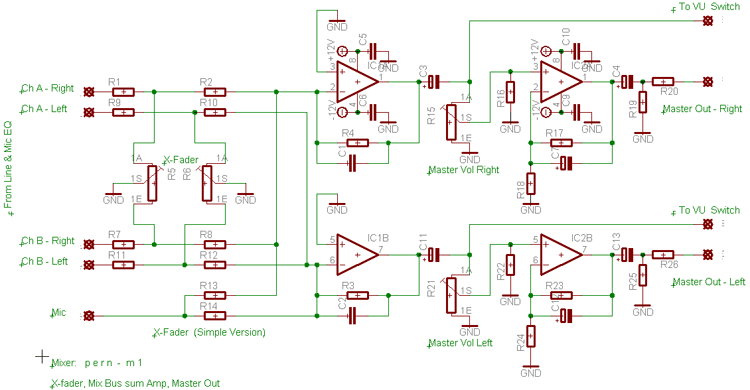

X-Fader (Simple Version), Master Out

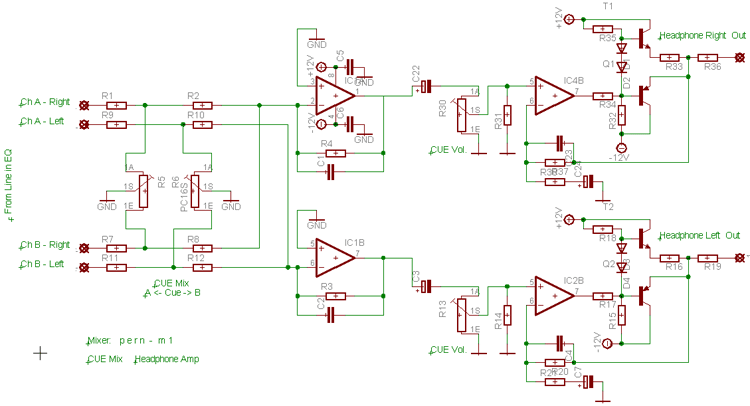

CUE Mix, Headphone Amp

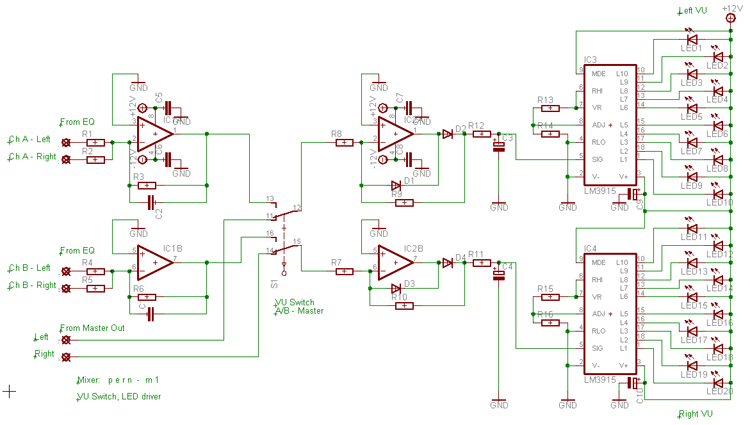

VU Switch , LED drivers etc
