Located in Landskrona in the South of Sweden. Working at the moment on some VDJ Plugins and some VDJ dedicated hardware...

Thu 08 Jan 09 @ 7:50 am

* 1st step, build a reference mixer. *
--------------------------------------


Since i cant really get my hands on an original UREI 1620 but really want to hear myself how it sounds etc i will build one and have as a sound reference for the other.

It will be built from the original schematics but with some minor changes:

- Built in a 19\" 1U box
- Added CUE - MIX function
- Added mono LED VU meter
- Added Effect send for Mic
- Removed EQ

Each channel have a 2 input select swich. So available inputs are:

- 1 Mic
- 2 Phono
- 3 Line

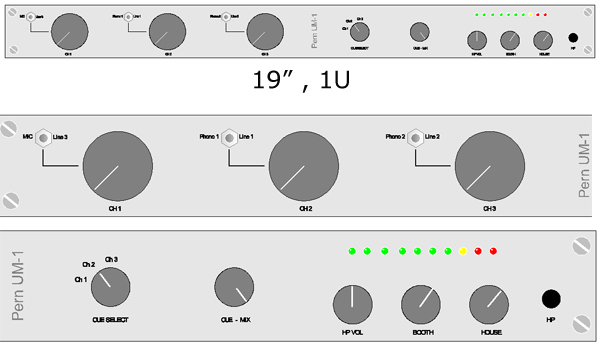

This is how it will look like:
