The Display of the Kontrol S5 is using a pre-designed GUI (skin) , which is downloaded and installed automatically when the controller is first connected to VirtualDJ. The skin (named Traktor Kontrol S5 Screens.zip) can be found in /skins folder of VirtualDJ Home-folder and can be customized to your needs. Note that this skin will not be visible in the INTERFACE tab of VirtualDJ and cannot be used as a main skin for VirtualDJ.

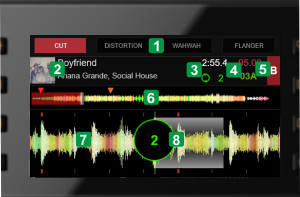

S5 Display - Deck view

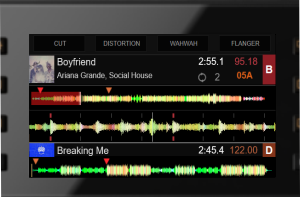

S5 Display - 4 Deck view

.

DISPLAY

1 FX

The selected Effects for FX Slots 1 to 4

2 TRACK

Loaded Track's Album Art, Title and Artist

3 TIME

Loaded Track's Remaining/Elapsed Time and Loop size value

4 BPM - KEY

Loaded Track's current BPM and Key

5 DECK

Selected Deck as Left/Right

6 PROGRESS

Track's song-progress waveform

7 WAVE

Track's large waveform

8 LOOP

Loop size overlay (when the LOOP encoder is touched)

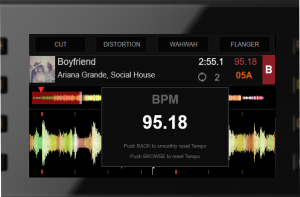

S5 Display - BPM view

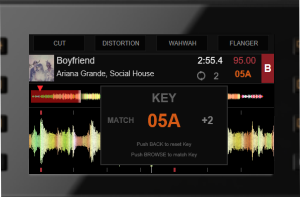

S5 Display - Key view

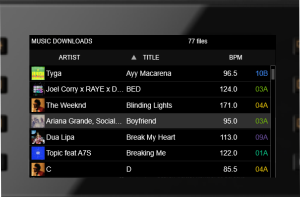

S5 Display - Browser view

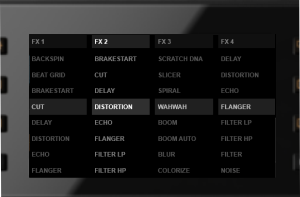

S5 Display - FX Select view

In Browser view, the Key Field can be replaced with Key Difference. See See Controller Settings
