Hardware Manuals


Denon DJ - MCX-8000

SETUP


Firmware & Drivers


Firmware : Update the firmware of the unit to the latest available version from http://www.denondj.com/mcx8000

Drivers : (Windows only) Download and install the latest Windows drivers from http://www.denondj.com/mcx8000. It is strongly advised to install drivers prior plugging the unit to a USB computer port.
No driver is necessary to be installed on Mac OSX computers.

VirtualDJ 8 Setup


Download and install VirtualDJ 8 from http://www.virtualdj.com/download/index.html (in case you have not done already)

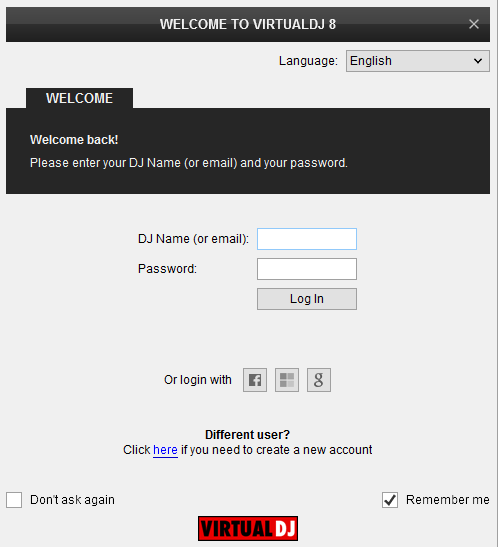

Once VirtualDJ 8 is opened, a Login Window will appear. Login with your virtualdj.com account’s credentials.

A Pro Infinity, a PLUS or a Pro Subscription License is required to use the Denon DJ MCX-8000. Without any of the above Licenses, the controller will operate for 10 minutes each time you restart VirtualDJ.
http://www.virtualdj.com/buy/index.html

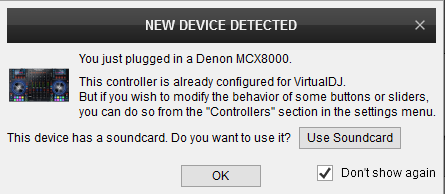

A detection window will appear next verifying proper connection.

Click on the Use Soundcard button in order VirtualDJ to apply the pre-defined audio configuration (speakers need to be connected to the rear side of the unit in this case)

Click to OK

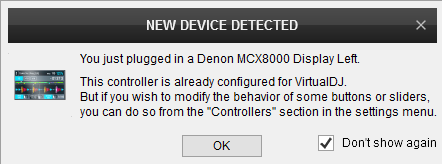

2 additional detection windows will appear next to verify the proper connection of the 2 available LCD Screens.

Click to OK for both


The unit is now ready to operate.


MIDI Operation

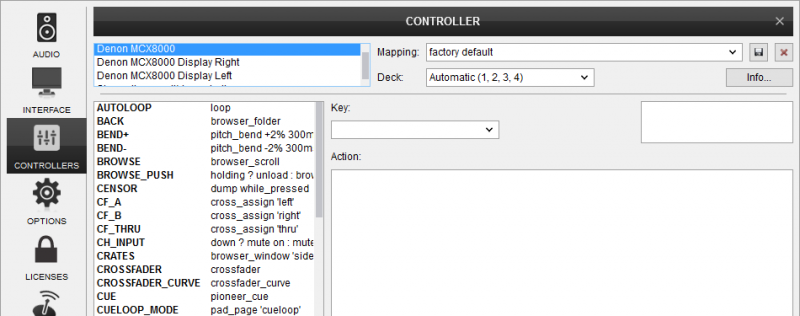

The unit should be visible in the CONTROLLERS tab of Config as 3 devices (Denon DJ MCX8000 for the main unit and 2 more for the Left and Right LCD Displays) and the “factory default” available/selected from the Mappings drop-down list for all 3 of them.



The factory default Mapping offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.
Find more details at http://www.virtualdj.com/wiki/VDJ8script.html

Note : If the LCD screens are inverted (i.e. the Left LCD screen shows the info of the right deck and vice versa), make sure the Display Left unit is assigned to Decks 1,3 and the Display Right unit is assigned to Decks 2,4.

AUDIO Setup

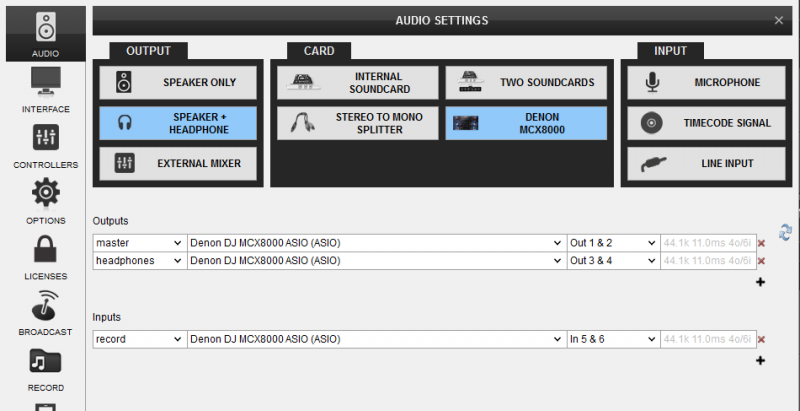

The unit has a pre-defined Audio setup and a special button in the AUDIO tab of Config to provide that.



See also Inputs & Recording.





For further software settings please refer to the User Guide of VirtualDJ 8.
http://www.virtualdj.com/manuals/virtualdj8/index.html
Layout
