Setup

Drivers

No driver is required to be installed for Mac OSX or Windows computers.
Simply connect the unit’s USB socket with a USB port of your computer

VirtualDJ Setup

Download and install VirtualDJ from https://www.virtualdj.com/download/index.html (in case you have not done already)

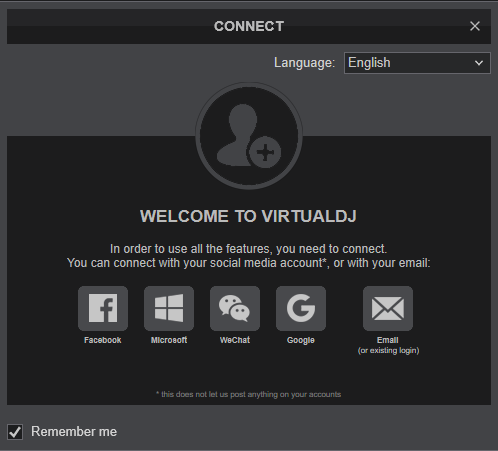

Once VirtualDJ is opened, a Connect Window will appear. Login with your virtualdj.com or your social media account’s credentials.

A Pro Infinity, a Home PLUS or a Pro Subscription License is required to use the Novation Launch Control XL. Without any of the above Licenses, the device will operate for 10 minutes each time you restart VirtualDJ.
https://www.virtualdj.com/buy/index.html

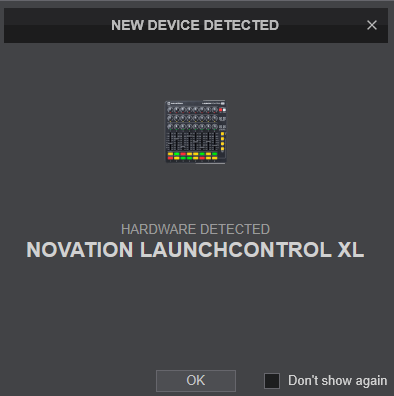

A detection window will appear next verifying the proper connection of the Launch Control XL.


Click to OK.

The device is now ready to operate.

MIDI SETUP

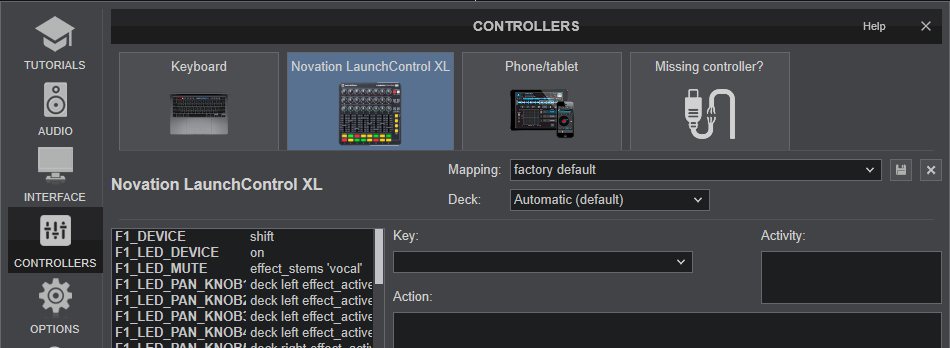

The device should be visible in the CONTROLLERS tab of Config and the “factory default” available/selected from the Mappings drop-down list.

The functionality is described in this Manual, however those can be adjusted to your needs via VDJ Script actions.

Find more details at https://www.virtualdj.com/wiki/VDJscript.html

AUDIO SETUP

The device is not offering any built-in audio interface and VirtualDJ will use your computer’s built-in sound card by default (if not any other is chosen).

Depending on the sound card you need to use, manually create the necessary Master and Headphones audio configuration. See more in Audio Setup of VirtualDJ Manual



For further software settings please refer to the User Guide of VirtualDJ.
https://www.virtualdj.com/manuals/virtualdj/index.html
