FACTORY TEMPLATE 2

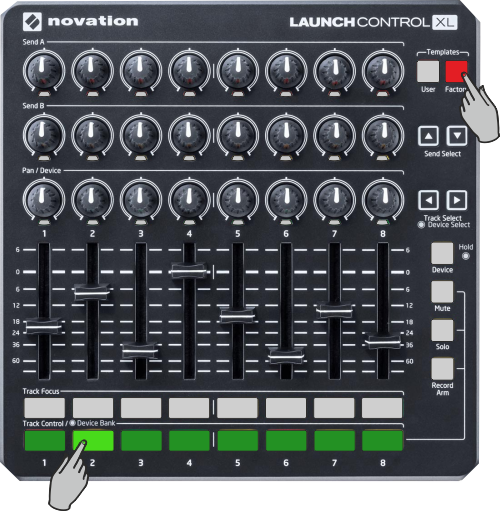

Hold down the FACTORY button and press the Track Control button 2 to get the Factory Template 2



This Template is pre-assigned to control EQ Volume, Stems and Pads for Left/Right Decks.

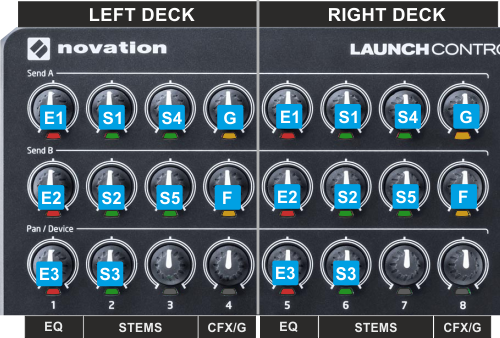

TOP KNOBS - EQ & STEMS

KEY

ACTION

E1

Adjust the High Frequencies of the VDJ Equalizer.

E2

Adjust the Mid Frequencies of the VDJ Equalizer.

E3

Adjust the Low Frequencies of the VDJ Equalizer.

S1

Adjust the HiHat Stem

S2

Adjust the Vocal Stem

S3

Adjust the Instrument Stem

S4

Adjust the Bass Stem

S5

Adjust the Kick Stem

G

Adjust the Gain (pre-fader level)

F

Adjust the selected Color FX (Filter by default)

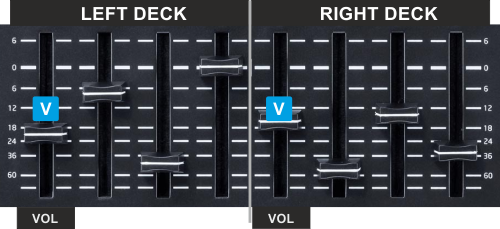

FADERS - VOLUMES

KEY

ACTION

V

Adjust the Volume of the Left/Right Deck

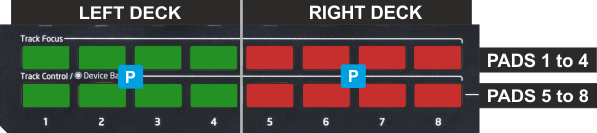

BOTTOM BUTTONS - PADS

KEY

ACTION

SHIFT ACTION

P

Trigger Pads 1 to 8 of the selected Pads Page for the Left/Right Deck. See Pads

Trigger the Shift-assigned action of of Pad 1 to 8 of the selected Pads Page. See Pads

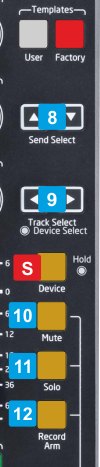

OTHER BUTTONS

KEY

ACTION

8

Use the Up arrow button to Swap Left Decks 1,3.
Use the Down arrow button to Swap Right Decks 2,4

9

Use the Left arrow button to select the Left Deck as default.
Use the Right arrow button to select the Right Deck as default

10

Select the next available Pads Page for the selected Deck

11

Select the previous available Pads Page for the selected Deck

12

Not used
