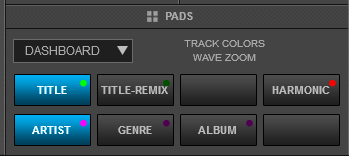

A special DASHBOARD Pads page will be available when the Dashboard unit is connected. The page can be selected from the Pads selection drop-down list from the VirtualDJ default skins or any other custom skins that provide Pads support..
This special page will provide the ability to adjust the content of the Browser columns on the LCD screens. The selections are saved across sessions and only apply to the Browser view of the Dashboard Displays and not the Browser of VirtualDJ.
Use Pads 1 or 2 (green pads) to display Title or Title (Remix) in the 1st column of the Files Browser view on the LCD screens of the unit
Use Pads 5, 6 or 7 (purple pads) to display Artist, Genre or Album in the 2nd Column of the Files Browser view
Use Pad 4 (red pad) to display Harmonic, Key or Key Difference in the 3rd Column of the Files Browser view when the Key column is selected (via SHIFT+VIEW button)

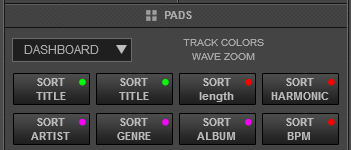

Hold SHIFT down and then use the Pads to sort Columns 1, 2 and 3 alphabetically in ascending on descending order, depending on the selected field of each Column.
Use 1st Parameter arrows <> to choose between displaying the Tracks with the assigned colors, or displaying Played tracks in red and un-played tracks in white.
Use 2nd Parameter arrows <> to select a Zoom level for the on-screen waveforms
- The Dashboard page can be selected from the Pads Page drop-down list of the GUI, but you may also assign any button as pad_page 'Dashboard' to perform this action
- The actions assigned to the Pads of this page, can be controlled from both the GUI or any other MIDI controller that supports Pads
