the SOUND INSURGENT
Its made by Vestax, its called
PMC-05-PRO4

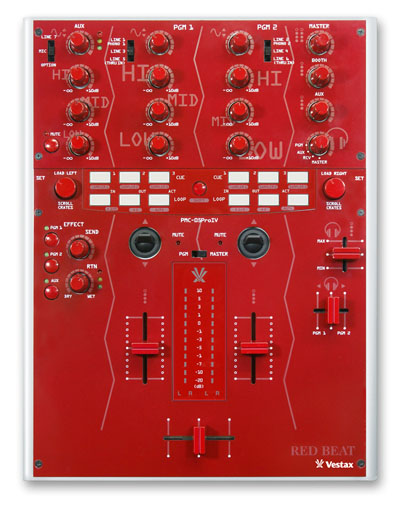

Vestax PMC-05-PRO4 2 Channel DJ Mixer/Controller
The world's first innovative DJ mixer, PMC-05Pro, has been re-innovated, once again, for optimal performance for all DJs - the pursuit of happiness for all DJs to mix and/or scratch to his or her heart's content. This mixer will make all DJs night a vibrant one rather than a raney one. 3BAND ISOLATOR
Isolators on each channel with Vestax trademark infinite cut. TRANSFORMER SWITCH
New strong switch design that lives up to hours and hours of aggressive performance. DVS BOX IN/OUT
Exclusive IN/OUT connection for DVS interfaces. No hassle plugging/unplugging turntables and CD players at venues and also offers better sound quality. NEW DIGITAL FADER
New noncontact type fader system. The smooth and sharp movement offers stressless action. Also equipped with Vestax traditional fader curve control. MIDI FUNCTION
Knobs and buttons of this section can be assigned with MIDI to control DJ software. Set them to control CUE points, loops, etc. NPUT/OUTPUT
Extensive inputs and outputs meeting all professional demands. Functions:
•New digital cross fader (Noncontactive multi linear sensor system) with adjustable cut lag sensitivity.
•MIDI control compatible to enable the DJ mix without operating keyboards.
•3 BAND ISOLATOR.
•Carefully designed control layout to pursuit operability.
•Multiple in/out connection: XLR out, PGM THRU in, PHONO/LINE select switch, 1/4inch booth out.
•MUTE LED indicator for ON/OFF status.
•AUX channel for variable inputs: MIC, LINE, Option
•Compatible with CoreAudio (Mac) & ASIO(Windows)
•*Design of the product and information in this document is subject to change without notice.
INPUT SECTION
•(NOMINAL INPUT LEVEL / IMPEDANCE)
•MIC -50dBv / 3.3k
•LINE1~7 -10dBv / 10k
•PHONO1~2 -42dBv / 40k
•RTN -10dBv / 10k
OUTPUT SECTION
•(NOMINAL OUTPUT LEVEL / IMPEDANCE) AUX -10dBv / 220
•Boothout -10dBv / 220
•MASTER 0dB / 440
•PHONES 100mW (47) / 8
FREQUENCY RESPONSE
•30Hz~20kHz
•CROSSTALK 65dB
•S/N RATIO 65dB
•DIMENSION(W×H×D) 264×85(105 including knob)×364mm
•WEIGHT 5.0kg
If so what are your thoughts?
Thanks for looking
Huey
PMC-05-PRO4
Vestax PMC-05-PRO4 2 Channel DJ Mixer/Controller
The world's first innovative DJ mixer, PMC-05Pro, has been re-innovated, once again, for optimal performance for all DJs - the pursuit of happiness for all DJs to mix and/or scratch to his or her heart's content. This mixer will make all DJs night a vibrant one rather than a raney one. 3BAND ISOLATOR
Isolators on each channel with Vestax trademark infinite cut. TRANSFORMER SWITCH
New strong switch design that lives up to hours and hours of aggressive performance. DVS BOX IN/OUT
Exclusive IN/OUT connection for DVS interfaces. No hassle plugging/unplugging turntables and CD players at venues and also offers better sound quality. NEW DIGITAL FADER
New noncontact type fader system. The smooth and sharp movement offers stressless action. Also equipped with Vestax traditional fader curve control. MIDI FUNCTION
Knobs and buttons of this section can be assigned with MIDI to control DJ software. Set them to control CUE points, loops, etc. NPUT/OUTPUT
Extensive inputs and outputs meeting all professional demands. Functions:
•New digital cross fader (Noncontactive multi linear sensor system) with adjustable cut lag sensitivity.
•MIDI control compatible to enable the DJ mix without operating keyboards.
•3 BAND ISOLATOR.
•Carefully designed control layout to pursuit operability.
•Multiple in/out connection: XLR out, PGM THRU in, PHONO/LINE select switch, 1/4inch booth out.
•MUTE LED indicator for ON/OFF status.
•AUX channel for variable inputs: MIC, LINE, Option
•Compatible with CoreAudio (Mac) & ASIO(Windows)
•*Design of the product and information in this document is subject to change without notice.
INPUT SECTION
•(NOMINAL INPUT LEVEL / IMPEDANCE)
•MIC -50dBv / 3.3k
•LINE1~7 -10dBv / 10k
•PHONO1~2 -42dBv / 40k
•RTN -10dBv / 10k
OUTPUT SECTION
•(NOMINAL OUTPUT LEVEL / IMPEDANCE) AUX -10dBv / 220
•Boothout -10dBv / 220
•MASTER 0dB / 440
•PHONES 100mW (47) / 8
FREQUENCY RESPONSE
•30Hz~20kHz
•CROSSTALK 65dB
•S/N RATIO 65dB
•DIMENSION(W×H×D) 264×85(105 including knob)×364mm
•WEIGHT 5.0kg
If so what are your thoughts?
Thanks for looking
Huey
Inviato Tue 31 Aug 10 @ 8:00 am
the SOUND INSURGENT
I would of thought someone has or is using this............hmmm, maybe ill be the first. Lol!
Thanks for looking
Huey
Thanks for looking
Huey
Inviato Tue 31 Aug 10 @ 1:08 pm
l_rids
Looks like a very nice piece of hardware... not exactly sure how the dedicated dvs input works? I'm looking for similar mixer with dedicated midi section but with built in sound card.
Inviato Wed 01 Sep 10 @ 4:56 am
HACKID
Hi.
in september you will be able to read a review about this mixer on digitaljockey portal ( http://www.digitaljockey.eu )
I can create def and mapping files for Vdj users ;)
Stay tuned
in september you will be able to read a review about this mixer on digitaljockey portal ( http://www.digitaljockey.eu )
I can create def and mapping files for Vdj users ;)
Stay tuned
Inviato Wed 01 Sep 10 @ 6:42 am
the SOUND INSURGENT
Nice!!
Inviato Wed 01 Sep 10 @ 8:15 am
