wblair
I currently have a dual CD player connected to a 4 channel mixer which is then connected to an amplifer. I also have a laptop computer connected to a Pioneer DDJ-S1 controller. The pioneer controller audio output is then connected to 4 channel mixer.
Is there some kind of hardware solution that I can buy to be able to run audio ouputs (rca or xlr) from my pioneer controller to this box and also run audio outputs (rca or xlr) from my 4 channel mixer to the box also. THe output from the box would then go to an amp or powered speakers.
The way I currently have it setup, you can adjust the sound levels and EQ for the controller on both the pioneer unit and the 4 channel mixer. I don't want dual bass, treble etc, controls. I want the sound from the pioneer unit to be only controlled by the mixer on the pioneer unit.
Thanks for any assistance
Dale
Is there some kind of hardware solution that I can buy to be able to run audio ouputs (rca or xlr) from my pioneer controller to this box and also run audio outputs (rca or xlr) from my 4 channel mixer to the box also. THe output from the box would then go to an amp or powered speakers.
The way I currently have it setup, you can adjust the sound levels and EQ for the controller on both the pioneer unit and the 4 channel mixer. I don't want dual bass, treble etc, controls. I want the sound from the pioneer unit to be only controlled by the mixer on the pioneer unit.
Thanks for any assistance
Dale
Inviato Wed 14 Sep 11 @ 11:47 am
A Man and His Music
Another small mixer will do. Here's one.
Inviato Wed 14 Sep 11 @ 12:04 pm
wblair
I thought of something like that, but I was looking for something with little or no knobs on it. I want the signal going from my Pioneer controller to be the same when reaching the amp as when it left the controller. Even a small mixer has adjustments that can be made either on purpose or accidently and that is what I'm trying to avoid.
The simpler the better. I just need imputs and outputs and no bass, treble, etc knobs.
Thanks,
Dale
The simpler the better. I just need imputs and outputs and no bass, treble, etc knobs.
Thanks,
Dale
Inviato Wed 14 Sep 11 @ 1:58 pm
djnutz
Why not run from the RECORD out from the 4 channel mixer to the AUX IN on the DDJ-S1? Then run the XLR out from the DDJ-S1 to the Amp?

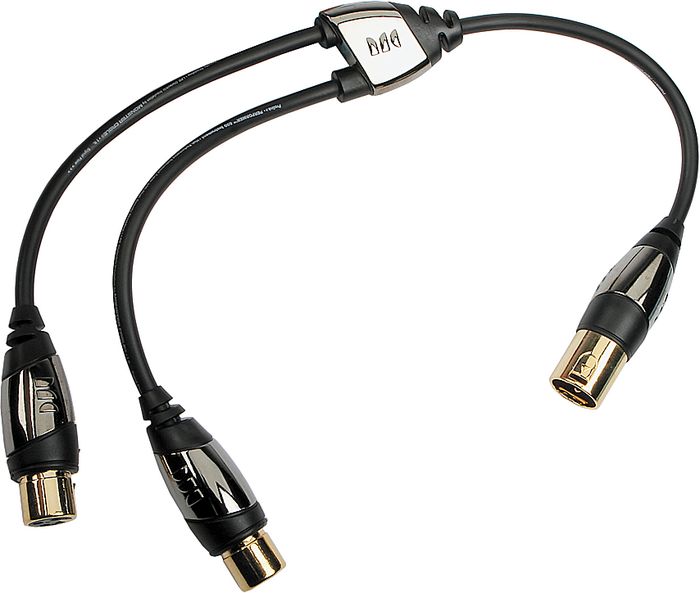

The other option would be to get a \"Y\" splitter and connect the right channel of the DDJ-S1 and the right channel of the Mixer together into a single cable which would go to the right input of the amp. Repeat for the left channel. Assuming the mixer has XLR out as well, Guitar Center does sell an XLR patch cord that would be dual female to single male adapter.
http://www.guitarcenter.com/Monster-Cable-1-Male-to-2-Female-XLR-Y-Adapter-104847041-i1172771.gc?&source=4WFRWXX&CAWELAID=439925528
The other option would be to get a \"Y\" splitter and connect the right channel of the DDJ-S1 and the right channel of the Mixer together into a single cable which would go to the right input of the amp. Repeat for the left channel. Assuming the mixer has XLR out as well, Guitar Center does sell an XLR patch cord that would be dual female to single male adapter.
http://www.guitarcenter.com/Monster-Cable-1-Male-to-2-Female-XLR-Y-Adapter-104847041-i1172771.gc?&source=4WFRWXX&CAWELAID=439925528
Inviato Wed 14 Sep 11 @ 4:18 pm
