Topic: Traktor Z1 and X1 mk3 stems mapping
I have both the Z1 and the X1 mk3 and they work well for switching between EQ and Stems, but what I would like to happen

- The Z1 treble/mid/low knobs to keep doing EQ,
- The X1 mk3 knobs to be able to switch between stems and effects/mixer like they do now
- The X1 mk3 switching between mixer/stems/effects to have no bearing on what the Z1 knobs do

At the moment if switch it on the X1 mk3 then the knobs on the Z1 also change. So if the X1 is pointing to Stems, then the Z1 changes to stems as well. I'm using the EZRemix functionality with the standard VDJ setup for the Z1 and X1 mk3, but maybe I need to use the default (EQ) and somehow map the X1 mk3 separately. Any ideas?

Inviato Thu 20 Jun 24 @ 10:39 am

Inviato Thu 20 Jun 24 @ 10:53 am
locoDogPRO InfinityModeratorMember since 2013
Z1 append the eq scripts with _freq
eg
eq_high_freq

Inviato Thu 20 Jun 24 @ 11:08 am
Thank you - they already have that, and it all changes when the X1 mk3 goes from EQ to Stems.

Inviato Thu 20 Jun 24 @ 11:14 am
I checked again.. missed the _freq bit and it works perfectly!

Really appreciate this, it was driving me crazy. Thanks

Inviato Thu 20 Jun 24 @ 11:19 am
DJAbsZouk wrote :
Thank you - they already have that, and it all changes when the X1 mk3 goes from EQ to Stems.


Hm, no.
I guess you didn't understand what you were proposed to do:

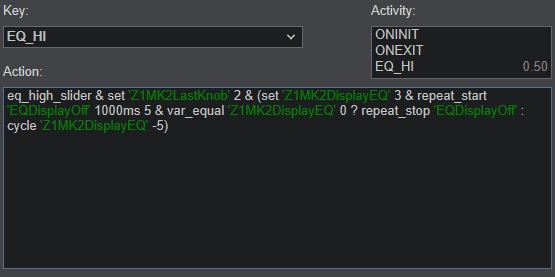

Your "HI" eq knob should be mapped as eq_high by default on Kontrol Z1
You were asked to change it to eq_high_freq
The difference between the 2 scripts is that eq_high will take into account the STEMS configuration (eq mode) while eq_high_freq will ALWAYS control the frequency equalizer.

Edit:
It seems you figured it out.. Cool!
