Hardware Manuals


Novation - Launchpad Pro

Setup


Drivers


Windows (only): Download and install the Novation USB Driver from http://us.novationmusic.com/support/product-downloads?product=Launchpad+Pro
No driver is required to be installed for Mac OSX computers.

Connect the unit’s USB socket with a USB port of your computer and the included DC Power adapter to an AC plug.

VirtualDJ Setup


Download and install VirtualDJ from https://www.virtualdj.com/download/index.html (in case you have not done already)

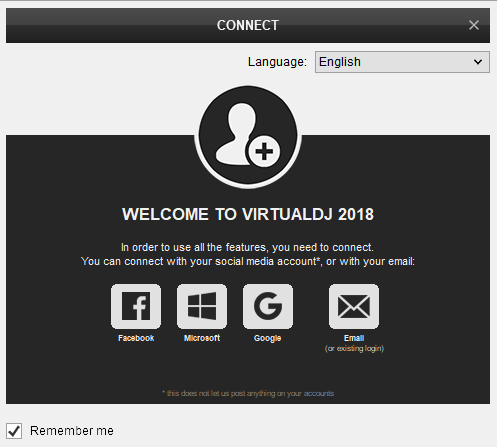

Once VirtualDJ is opened, a Connect Window will appear. Login with your virtualdj.com or your social media account’s credentials.

A Pro Infinity, a PLUS or a Pro Subscription License is required to use the Novation Launchpad Pro. Without any of the above Licenses, the unit will operate for 10 minutes each time you restart VirtualDJ.
https://www.virtualdj.com/buy/index.html

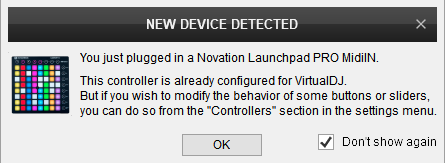

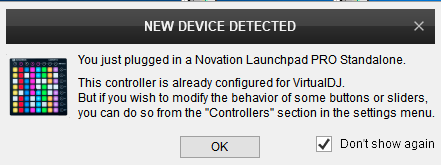

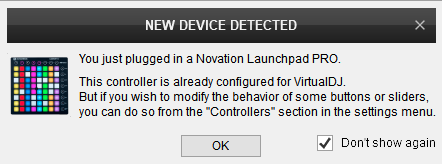

A detection window will appear next verifying the proper connection of the Launchpad Pro.

Click to OK.


The unit is now ready to operate.


MIDI SETUP


The unit should be visible in the CONTROLLERS tab of Config as 3 separate devices (Pro, Pro Standalone and Pro MidiIN) and the “factory default” available/selected from the Mappings drop-down list for each one of them.

The factory default Mapping of each device offers the functions described in this Manual, however those can be adjusted to your needs via VDJ Script actions.

Find more details at http://www.virtualdj.com/wiki/VDJscript.html



AUDIO SETUP


The unit is not offering any built-in audio interface and VirtualDJ will use your computer’s built-in sound card by default (if not any other is chosen).

Depending on the sound card you need to use, manually create the necessary Master and Headphones audio configuration. See more in Audio Setup of VirtualDJ Manual



For further software settings please refer to the User Guide of VirtualDJ 8.
http://www.virtualdj.com/manuals/virtualdj8/index.html
